OL 500/800 HP



Cutting range





Capacity at 90 °

in



19.68"

19.68"

32.28"× 19.68"

Material support height

in

27.56"

Sawband speed

m/min

15-85

Sawband dimmensions

mm

7050x54x1,3

Drive power:



Saw motor

hp

74.77

Coolant pump

hp

13.59

Hydraulic motor

hp

82.94

Chip brush

hp

24.47

chip conveyer

hp



Overall dimensions:



length

ft

11ft 5.79

width

ft

4ft 7.12

height

ft

7ft 8.91

Net weight

lb

6393lb



Description

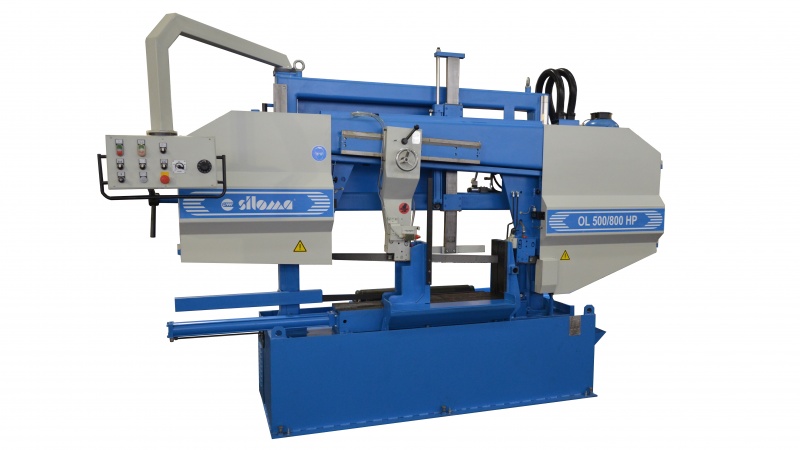

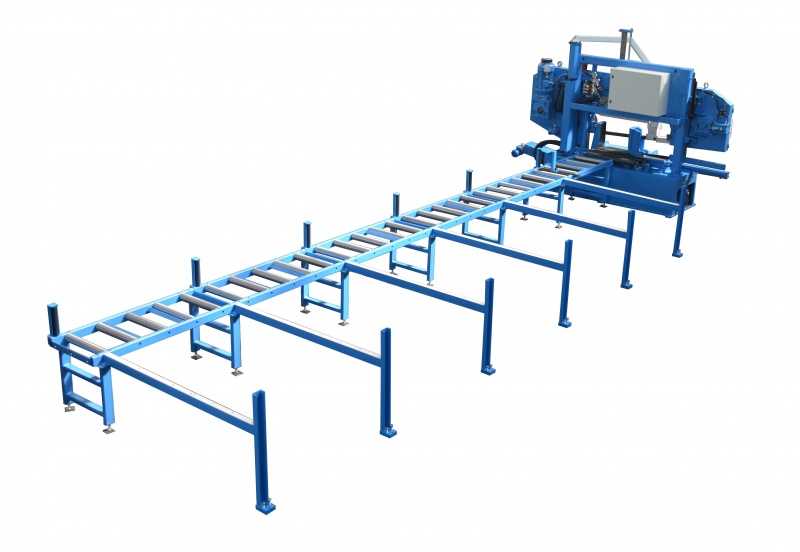

The model OL 500/800 HP is a high efficiency semi-automatically operated bandsaw cutting machine with parallel saw bow guiding for industrial usage and ultimate application of cutting of solids, pipes and profiles of ferrous and non-ferrous metals.

The cutting process performs automatically without operator’s involvement. The saw bow runs downwards via gravitational way and the feeding speed is controlled by a hydraulic cylinder and a valve.

The profile shall be clamped hydraulically and the cutting cycle runs automatically: material clamping, cutting, saw bow goes upwards, material releasing.

The cutting speed is assured by an asynchrony electric motor and it is frequency controlled at the range of 15 ÷ 100 m/min.

The machine OL 500/800 HP belongs to the category of semi-automatic machines equipped with a hydraulic system, allowing automation of many working operations (material clamping in the vice, saw bow movement up and down), and a cutting force control. The machine is equipped with a system for automatic tracking both of the feeding speed and the cutting force. At the cutting feed extremely increasing the saw bow slows automatically to its full stop and smoothly increasing up to the set value after the cutting force is normalized.

Saw bow feeding – hydraulically;
Saw bow lifting – hydraulically;
Material clamping – hydraulically;
Saw blade tensioning – manually;
Cutting length setting – manually;
Movable band guide adjustment – manually;

Easy maintenance, minimal required floor space
Simple servicing and long working life
Excellent relation price/productivity/quality
