OL 320 G H



Cutting range





Capacity at 90 °

in



12.5”

12.59”

17.72× 9.45”



Capacity at 45 °

in



12.59"

12.59"

13.78" x 9.45"



Capacity at 30°

in



9.45"

8.66"

9.45" × 6.29"

Material support height

in

28.35"

Mitre cutting range – le



90° 30°

Saw band speed

m/min

15-100

Saw band dimensions

mm

4140x27x0,9

Drive power:



Saw motor

hp

29.49

Coolant pump

hp

16.08

Hydraulic motor

hp

16.08

Chip brush

hp

12.06

Overall dimensions:



length

ft

6ft 11.46

width

ft

3ft 6.91

height

ft

4ft 7.51

Net weight

lb

2094lb



Description

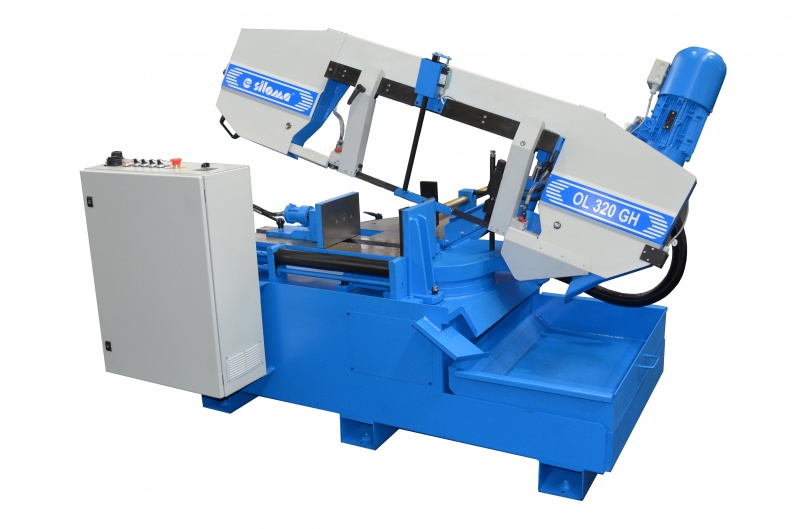

OL 320 G H – semi-automatic operated swing frame type bandsaw cutting machine for industrial usage and ultimate application for cutting of cutting of solids, pipes and profiles of ferrous and non-ferrous metals. Semiautomatic cycle at following steps: material clamping, main motor start, cutting process, saw bow lifting, material release, main motor stop.

The construction of the machine OL 320 G H allows fast and easy adjustment of the saw bow at the angle of cutting at the range of 90º to 30º at left, accuracy of 1º by a scale. The center point of the saw bow rotation is in coincidence with the cross point between the cutting blade with the immovable jaws plane and for that reason the cut bar length doesn’t change when cutting at an angle. The saw bow upright movement is hydraulic.

The cutting cycle is automatic without operator action – the saw bow goes down via its gravitation force and the feeding speed is controlled by a hydraulic cylinder and a feeding speed control valve

The cutting speed is assured by an asynchrony electric motor and it is frequency controlled at the range of 15 ÷ 100 m/min.

The machine OL 320 G H belongs to the category of semi-automatic machines equipped with a hydraulic system, allowing automation of many working operations (material clamping in the vice, saw bow movement up and down), and a cutting force control. The machine is equipped with a system for automatic tracking both of the feeding speed and the cutting force. At the cutting feed extremely increasing the saw bow slows automatically to its full stop and smoothly increasing up to the set value after the cutting force is normalized.

Saw bow feeding – hydraulically;
Saw bow lifting – hydraulically;
Cutting angle setting – manually;
Saw bow fixing at the angle cutting – manually;
Material clamping – hydraulically;
Saw blade tensioning – manually;
Cutting length setting – manually;

Easy maintenance, minimal required floor space
Simple servicing and long working life
Excellent relation price/productivity/quality
