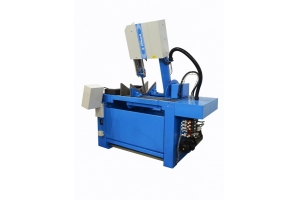

V423 DG H

Cutting range b(bxh)
Capacity at 90 ° in 16 17/32
in 16 17/32
in 16 17/32 × 20 55/64
Capacity at 45 ° in 11 13/16
in 11 13/16
in 16 17/32 × 11 13/16
Capacity at 30° in 8 21/32
in 8 21/32
  16 17/32 x 8 21/32
Mitre cutting range – le/ri   30° 90° 30°
Sawband speed m/min 15-100
Sawband dimmensions in 4570x34x1.1
Drive power:
Saw motor hp 4,078864852
Coolant pump hp 13,59621617
Hydraulic motor hp 42,14827014
Chip brush hp 12,23659456
Material support height in 41 47/64
Overall dimensions:
length in 7ft 2.61
width in 4ft 3.18
height in 8ft 6.36
Net weight lb 2976lb



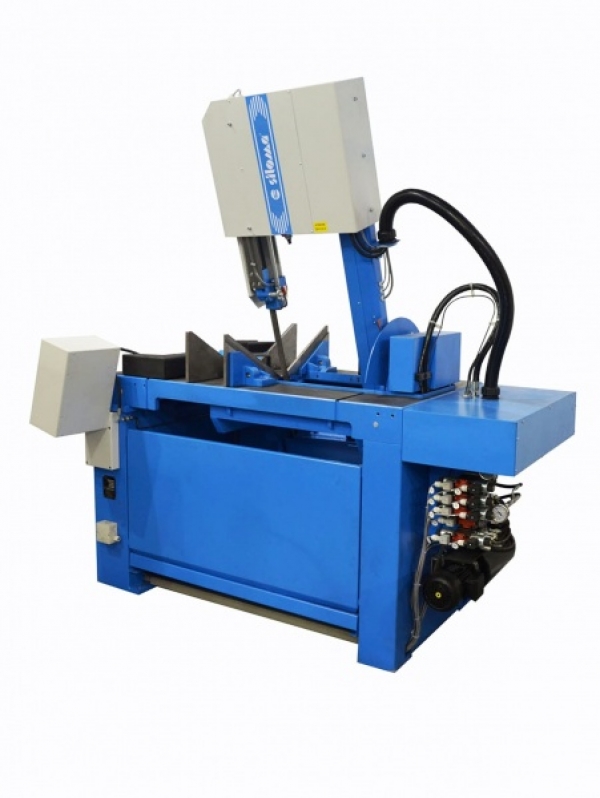

The model V 423 DGH is a vertical semi-automatically operated bandsaw cutting machine designed both for straight and miter cutting in the range of 30° at left – 90° – 30° at right of profiles, pipes and solid materials.

The construction of the model V 423 DGH allows precise infinitely variable cutting angle setting with an automatic fixing and visualization by a mechanical scale with accuracy of 1°. Optional this visualization is offered by a digital read-out monitor having accuracy of 0,1°.

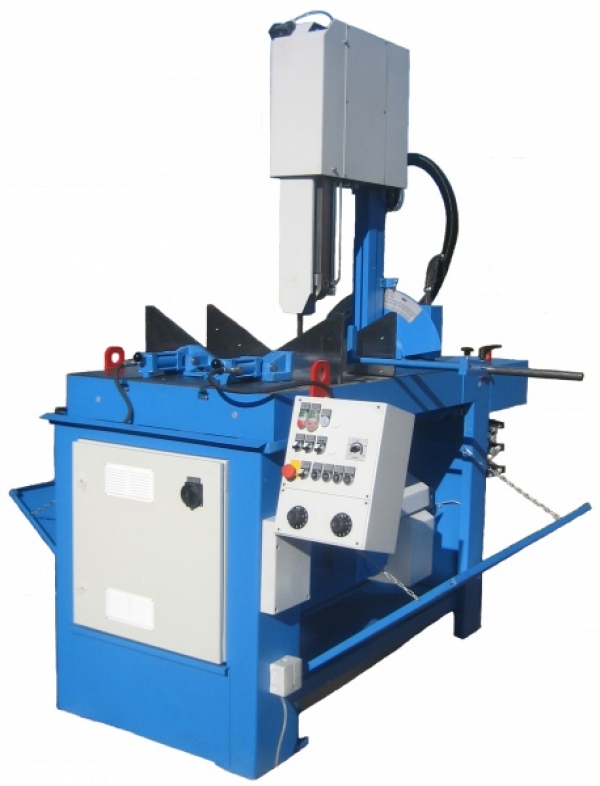

The saw bow of the machine V 423 DGH is bilaterally rigidly supported both in front and at the back side of the saw blade. The rotation point of the saw bow is situated exactly at the point of the saw blade plane crossing with the immovable jaws plane and the machine’s working table which guarantees very precisely measuring and cutting at 90º or any other angle.

The cutting process performs automatically without any operator’s action. The saw blade feeding is via hydraulic cylinder and the feeding speed is controlled by a precise hydraulic flow control valve.

The cutting speed is performed by an asynchrony motor frequently controlled in the range of 15 ÷ 100 m/min.

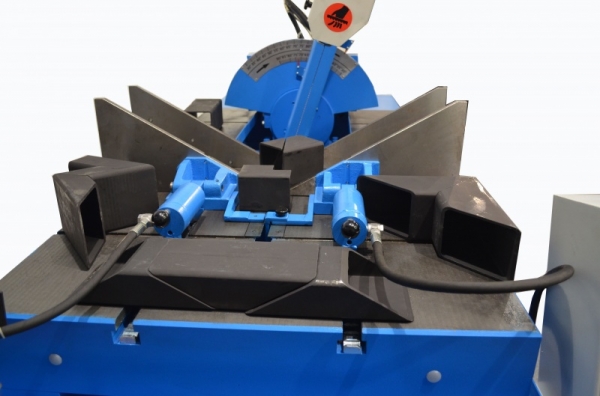

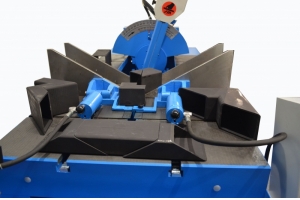

The cast iron made working table of the machine V 423 DGH, having two T-slots, allows conflict less loading of the materials being cut by a crane even such ones having improper forms.

Feeding movement at cutting – hydraulically;
Material clamping – hydraulically;
Saw blade tensioning – manually;
Saw bow tilting – hydraulically;
Saw bow fixing – hydraulically;
Upper band saw guiding device – hydraulically

The machine V 423 DGH requires extremely small floor space regarding the cutting capacity.
