V 423 DGA NC

Cutting range b(bxh)
Capacity at 90 ° in 16 17/32
in 16 17/32
  16 17/32 × 20 55/64
Capacity at 45 ° in 11 13/16
in 11 13/16
  16 17/32 × 11 13/16
Capacity at 30° in 8 21/32
in 8 21/32
  16 17/32 x 8 21/32
Mitre cutting range – le/ri   30° 90° 30°
Sawband speed m/min 15-100
Sawband dimmensions in 4570x34x1.1
Stock feeding:
single in 118  7/64
Minimum rest in automatic mode in 17 23/32
Drive power:
Saw motor hp 4,078864852
Coolant pump hp 13,59621617
Hydraulic motor hp 42,14827014
feed motor hp 61,18297278
Chip brush hp 12,23659456
Material support height in 41 47/64
Overall dimensions:
length ft 15ft 3.46
width ft 7ft 2.61
height ft 7ft 6.94
Net weight lb 4850lb

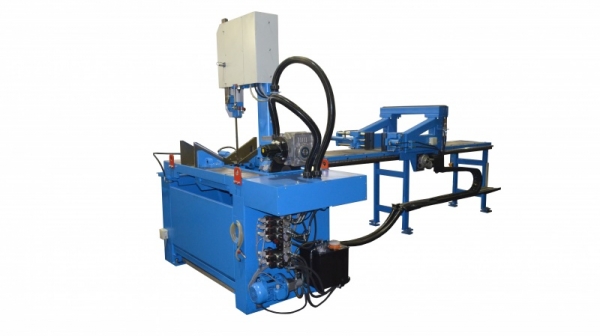

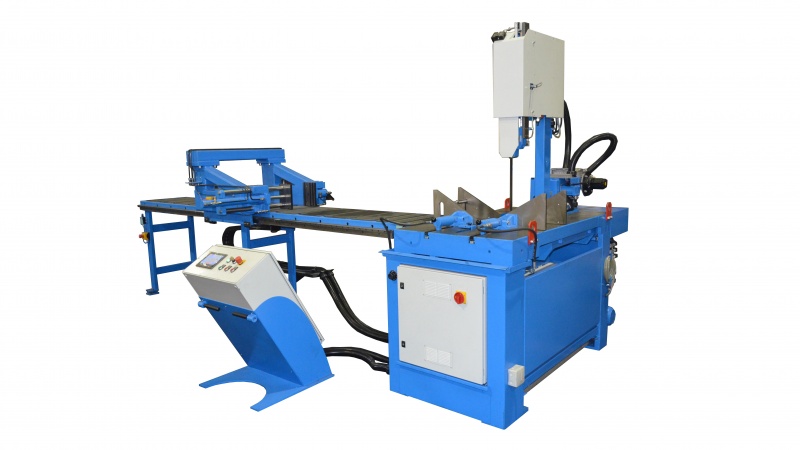

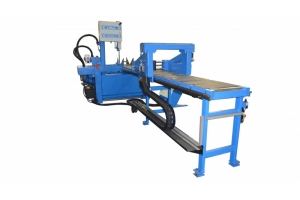

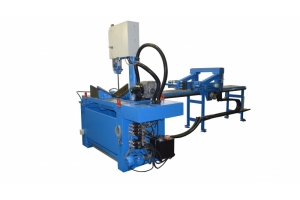

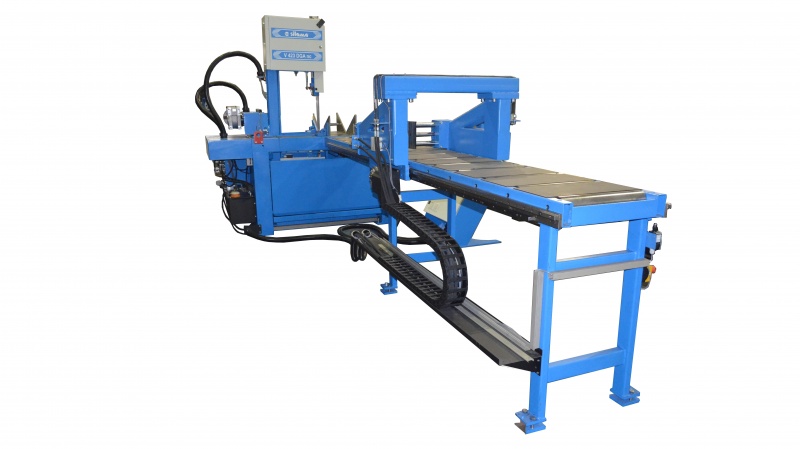

The model V 423 DGA nc is a vertical automatically operated bandsaw cutting machine designed both for straight and miter cutting in the range of 30º at left – 90º – 30º at right of profiles, pipes and solid materials.

The machine V 423 DGA nc is NC controlled based on an industrial programmable controller having 5,8″ colour sensor display with capacity of setting of 99 operational programs containing cutting length and number of bars.

The working cycle could be automatic at the conventional cutting and at the trapezoidal cutting.

The construction of the model V 423 DGA nc allows precise infinitely variable cutting angle setting with an automatic fixing and visualization by a digital read-out monitor having accuracy of 0,1º.

The saw bow of the machine V 423 DGA nc is bilaterally rigidly supported both in front and at the back side of the saw blade. The rotation point of the saw bow is situated exactly at the point of the saw blade plane crossing with the immovable jaws plane and the machine’s working table which guarantees very precisely measuring and cutting at 90º or any other angle.

The cutting speed is performed by an asynchrony motor frequently controlled in the range of 15 ÷ 100 m/min.

The cast iron made working table of the machine V 423 DGA nc, having two T-slots, allows conflict less loading of the materials being cut by a crane even such ones having improper forms.

Feeding movement at cutting – hydraulically;
Material clamping – hydraulically;
Material feeding – electrically-mechanical;
Saw blade tensioning – manually;
Saw bow rotation – elecricaly – mechanical;
Saw bow fixation – hydraulically;
Adjustment of the upper band guide – hydraulically
