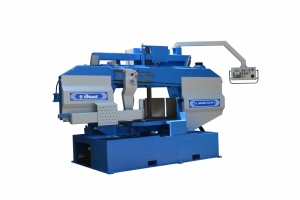

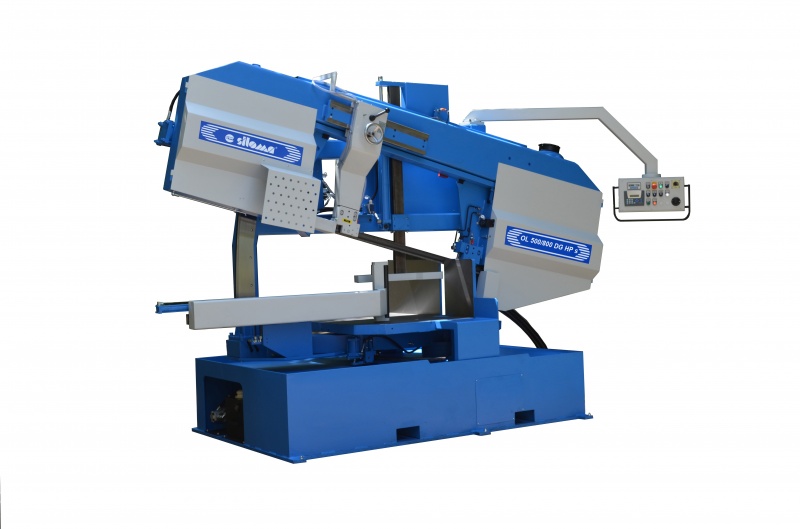

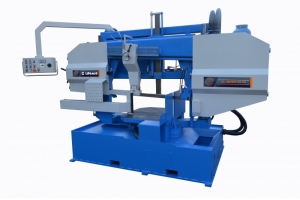

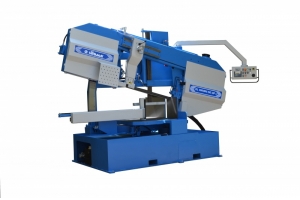

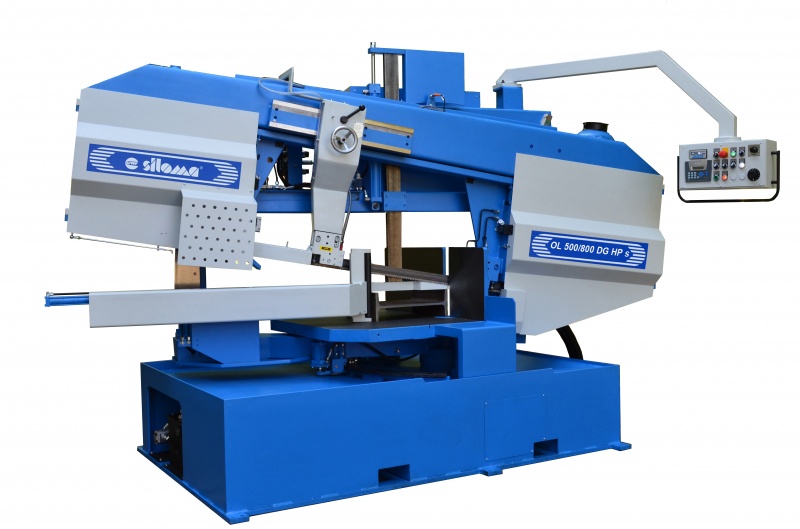

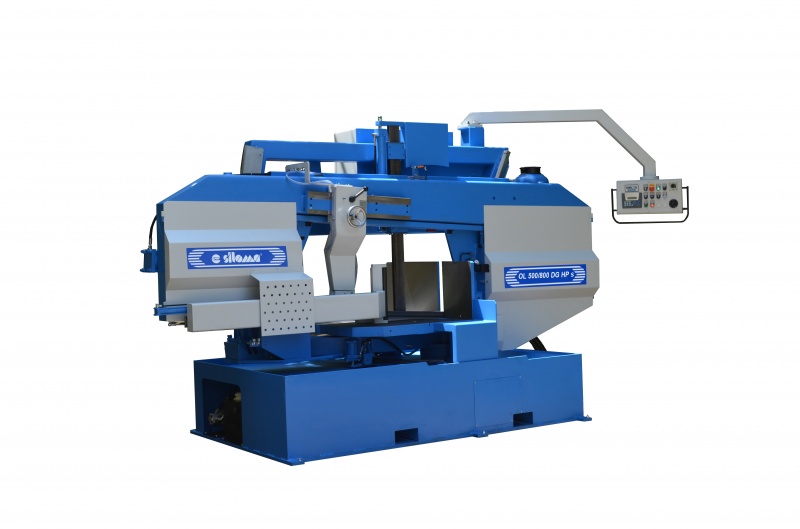

OL 500/800 DG HP S



Cutting range





Capacity at 90 °

in





19.68"

32.28"×19.68"



Capacity at 45 °

in





19.68"×19.68"

19.68"×20.86"



Capacity at 30°

in



13.77"×13.77"

19.68"×13.77"

Mitre cutting range – li/re



30° 90° 45°

Material support height

in

27.56"

Sawband speed

m/min

15-100

Sawband dimmensions

mm

7050x54x1.3

Drive power:



Saw motor

hp

100.54

Coolant pump

hp

16.08

Hydraulic motor

hp

100.54

Chip brush

hp

12.06

Overall dimensions:



length

ft

11ft 9.73

width

ft

4ft 7.18

height

ft

7ft 10.48

Net weight

lb

6613lb



Description

The machine OL 500/800 DG HP s a semi-automatically operated gantry type bandsaw cutting machine for industrial usage and ultimate application both for straight and miter cutting of solids, pipes and profiles of ferrous and non-ferrous metals.

The model OL 500/800 DG HP s has built-in function for automatic adaptation of the saw blade inclination up to profile’s cross-section in the range of 3°÷20° during the cutting process itself. This allows higher both cutting and feeding speeds usage and relatively lower noise level and higher efficiency. The cut length remains shorter and this makes possible choosing of smaller teeth pitch of the saw blade.

The construction of the machine OL 500/800 DG HP s permits easy and fast saw bow setting for miter cutting at the range of 45° at right 90° up to 30° at left with accuracy of 0,1° by the digital read-out display. The center point of the saw bow rotation is in coincidence with the cross point between the cutting blade with the immovable jaws plane and for that reason the cut bar length doesn’t change when cutting at an angle.

The cutting cycle is automatic without operator action – the saw bow goes down via its gravitation force and the feeding speed is controlled by a hydraulic cylinder and a feeding speed control valve.

The cutting speed is assured by an asynchrony electric motor and it is frequency controlled at the range of 15÷100 m/min.

The machine OL 500/800 DG HP s belongs to the category of semi-automatic machines equipped with a hydraulic system, allowing automation of many working operations (material clamping in the vice, saw bow movement up and down), and a cutting force control. The machine is equipped with a system for automatic tracking both of the feeding speed and the cutting force. At the cutting feed extremely increasing the saw bow slows automatically to its full stop and smoothly increasing up to the set value after the cutting force is normalized.

Saw bow feeding – hydraulically;
Saw bow lifting – hydraulically;
Cutting angle setting – manually;
Saw bow fixing at the angle cutting – hydraulically;
Material clamping – hydraulically;
Saw blade tensioning – manually;
Cutting length setting – manually;

Easy maintenance, minimal required floor space
Simple servicing and long working life
Excellent relation price/productivity/quality
