OL 500/630 AP



Maximum cut off stock





Cutting at angle 90 °

in



19.68"

19.68"

24.80"×19.68"

Bundle clamping capacity max.

in

x

Material support height

in

27.56"

Saw band speed

m/min

20-120

Saw band dimensions

mm

6650x54x1,3

Stock feeding:



single

in

19.68"

repeatedly

in

limitless

Shortest length of residual piece in automatic mode

in

6.29"

Drive power:



Saw motor

hp

101.97

Coolant pump

hp

13.59

Hydraulic motor

hp

82.94

Chip brush

hp

12.24

Overall dimensions:



length

ft

12ft 11.51

width

ft

7ft 3.79

height

ft

7ft 8.52

Net weight

lb

11904lb



Description

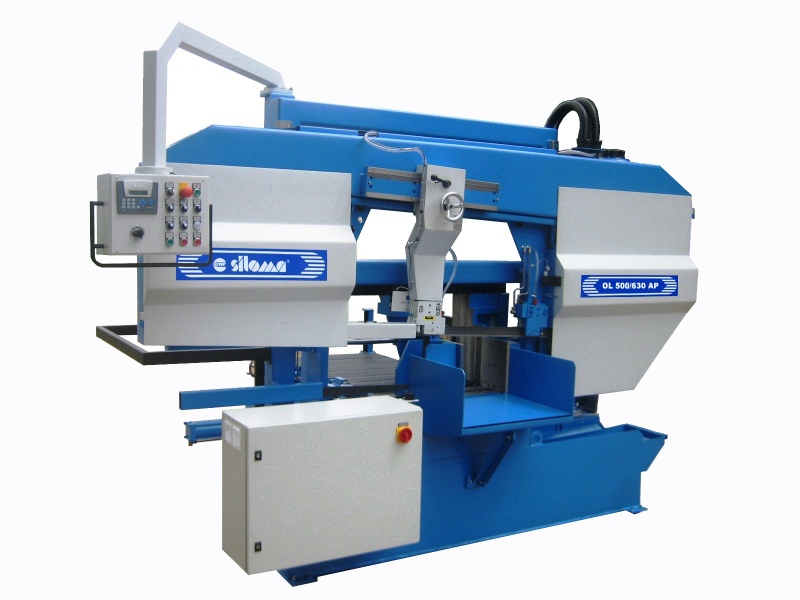

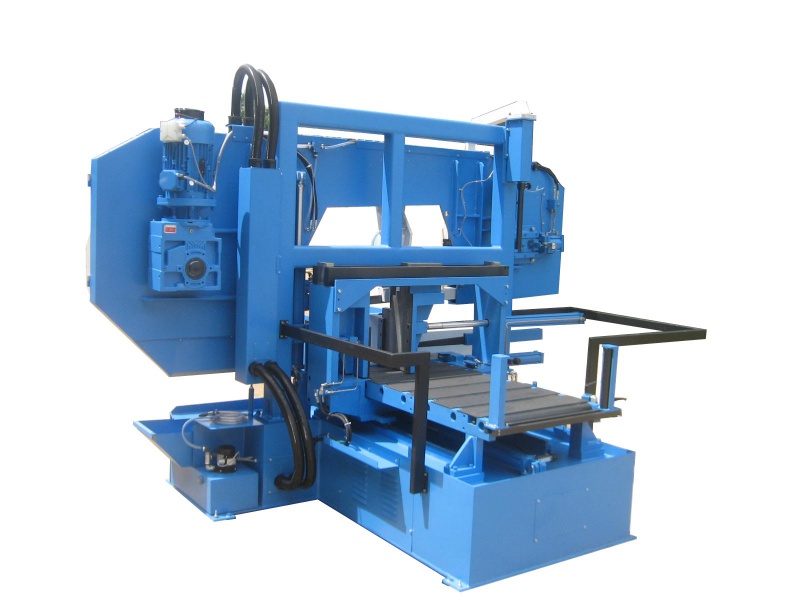

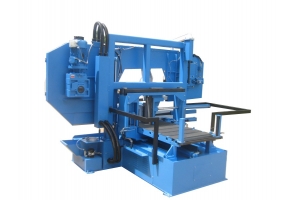

The model OL 500/630 AP e high efficiency gantry type bandsaw cutting machine designed for straight cutting of solids, pipes and profiles of ferrous and non-ferrous metals.

The model OL 500/630 AP is controlled on base of an industrial programmable controller having opportunity for setting of 99 programs containing number of the bars being cut.

The machine OL 500/630 AP belongs to the category of fully-automatic machines equipped with a hydraulic system, allowing automation of many working operations (material clamping in the vice, saw bow movement up and down), and a cutting force control. The machine is equipped with a system for automatic tracking both of the feeding speed and the cutting force. At the cutting feed extremely increasing the saw bow slows automatically to its full stop and smoothly increasing up to the set value after the cutting force is normalized.

Saw bow feeding – hydraulically;
Saw bow lifting – hydraulically;
Material feeding – hydraulically;
Material clamping – hydraulically;
Saw blade tensioning – hydraulically;
Cutting length setting – manually
