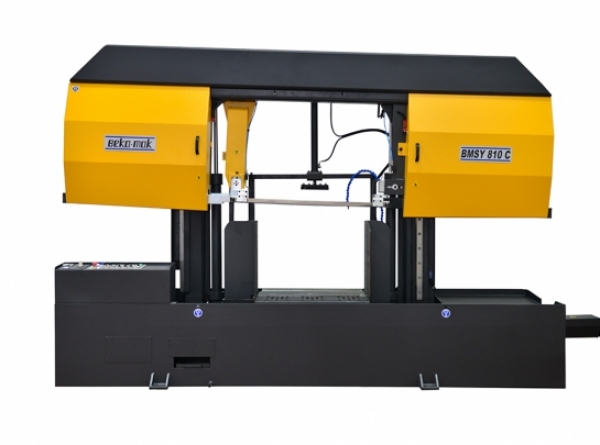

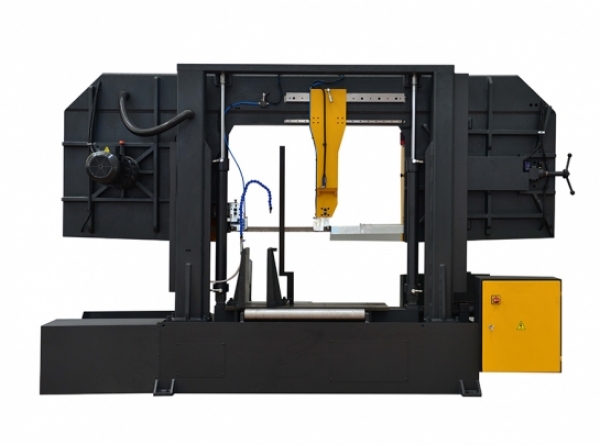

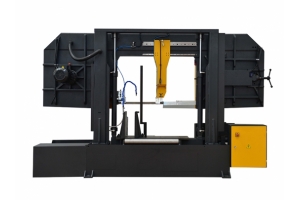

BMSY-810C

Beka-Mak Linear Way horizontal bandsaws have been designed to give a low cost compact and rugged machines.The bow is constructed in heavy gauge steel and mounted two chromed and grinding pillars offer a strong rigid sawframe, providing a high degree of accurancy when cutting. The machines are fitted with a removable coolant tank incorporating a submerged electric coolant pump which supplies coolant to both guide assemblies. These models can cope with most types of material.Blade guides with rollers and carbide pads provide precise support for the blade. Thermal overload and no-volt release are standart feature and the machines automatically switch off at the end of the cut and sawframe is lifted hydraulically up to the adjusted level.


pdf Data Sheet



Technical Details

Round Cutting Capacity mm 810
Flat Cutting Capacity mm 850 x 810
Square Cutting Capacity mm 810
+45° Round Cutting Capacity mm 480
+45° Flat Cutting Capacity mm 480 x 810
+45° Square Cutting Capacity mm 480
Main Drive Motor kW 4
Hydraulic Motor kW 1,5
Coolant Pump kW 0,12
Cutting Speeds m/min. 20 - 100
Band Dimensions mm 8200x41x1,3
Working Height mm 585
Weight kg 3080
Length mm 3900
Width mm 1200
Height mm 2350
