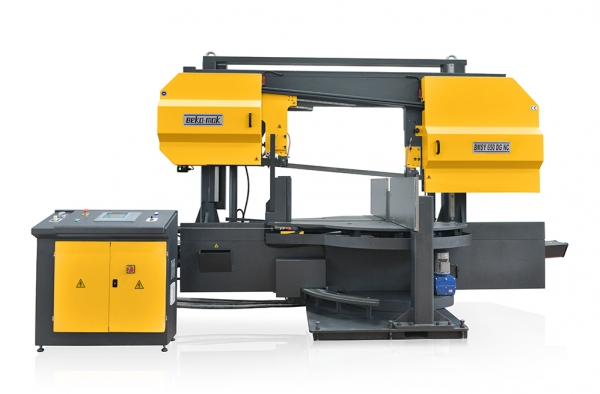

BMSY-650 DG NC

Two way powered mitre with NC angle setting

Features

  • Powered mitre setting with NC control
  • Mitre cuts to +/-60 deg with +/-0.1 deg tolerance
  • 5-deg inclined blade for optimum cutting performance
  • Hydraulic blade tensioning
  • Blade deviation control with auto shut off
  • Cutting feed & pressure regulation
  • Material height sensor with rapid approach feature
  • Auto setting of the blade guide arm
  • Powered swarf conveyor

Capacity of the machine is 600/1000 and projected for fast cuttings straight or with angle . Sensetivity of the machine lets cutting with percentage angles. 650 DG NC has PLC system and open to future developments. Touch panel supplies easy usage. You can easily find the failure, follow the cutting process or choose the options by control panel. Rollers on the table are designed for easy movement of the materials on machine. Automatic blade tentioning reduces the failure at cutting process. Blade is under control by hydraulically and magnetically. The bow approaches the material faster so you gain time at cutting different dimensions of materials. No need to change the angle of the material, changing the angle of the bow is enough.


pdf Data Sheet



Technical Details

Round Cutting Capacity mm 650
Flat Cutting Capacity mm 1000 x 600
Square Cutting Capacity mm 600
+30° Round Cutting Capacity mm 650
+30° Flat Cutting Capacity mm 840 x 600
+30° Square Cutting Capacity mm 600
+45 Round Cutting Capacity mm 650
+45° Flat Cutting Capacity mm 660 x 600
+45° Square Cutting Capacity mm 600
+60° Round Cutting Capacity mm 440
+60° Flat Cutting Capacity mm 440 x 600
+60° Square Cutting Capacity mm 440
-30° Round Cutting Capacity mm 650
-30° Flat Cutting Capacity mm 840 x 600
-30° Square Cutting Capacity mm 600
-45° Round Cutting Capacity mm 650
-45° Flat Cutting Capacity mm 660 x 600
-45° Square Cutting Capacity mm 600
Main Drive Motor kW 7,5
Hydraulic Motor kW 4
Coolant Pump kW 0,12
rotating motor kW 0,37
Chip Conveyor Motor kW 0,25
Motorized Swarf Brush kW 0,18
Cutting Speeds m/min. 20 - 100
Band Dimensions mm 8400x54x1,6
Working Height mm 880
Weight kg 6250
Lenght mm 4750
Width mm 1970
Height mm 2630
