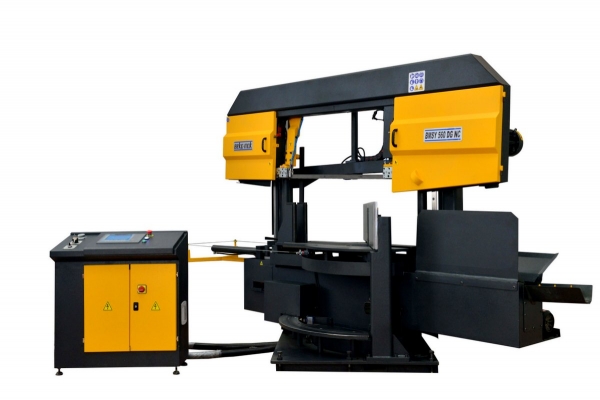

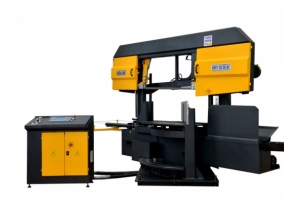

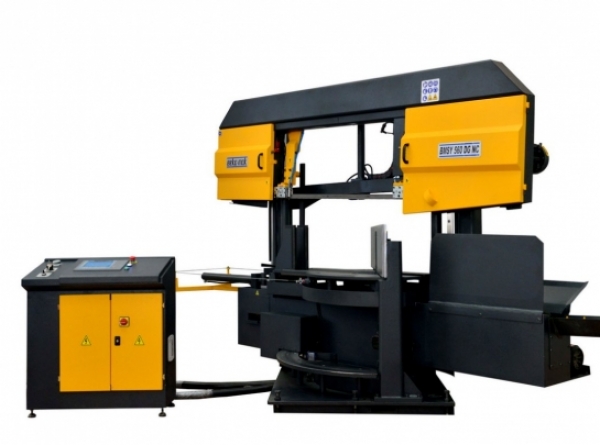

BMSY-560 DG NC

Capacity of the machine is 500/850 and projected for fast cuttings straight or with angle . Sensetivity of the machine lets cutting with percentage angles. BMSY 560 DG has automatic control system and open to future developments. Rollers on the table are designed for easy movement of the materials on machine. Hydraulic equipment on fixed and moveable guide arms controls cutting spped for a more smooh cut. Blade is under control mechanically switch system. Design of the machine and movement of the upper body and guide arms controlled by sensitive lineer guides supply the operator an easier use.


pdf Data Sheet



Technical Details

Round Cutting Capacity mm 560
Flat Cutting Capacity mm 820 x 540
Square Cutting Capacity mm 540
+30° Round Cutting Capacity mm 560
+30° Flat Cutting Capacity mm 705 x 540
+30° Square Cutting Capacity mm 540
+45° Round Cutting Capacity mm 550
+45° Flat Cutting Capacity mm 550 x 540
+45° Square Cutting Capacity mm 540
+60° Round Cutting Capacity mm 360
+60° Flat Cutting Capacity mm 360 x 540
+60° Square Cutting Capacity mm 360
-30° Round Cutting Capacity mm 500
-30° Flat Cutting Capacity mm 705 x 540
-30° Square Cutting Capacity mm 540
-45 Round Cutting Capacity mm 550
-45° Flat Cutting Capacity mm 550 x 540
-45° Square Cutting Capacity mm 540
Main Drive Motor kW 4
Hydraulic Motor kW 1,1
Coolant Pump kW 0,12
Band Dimensions mm 6800x41x1,3
Working Height mm 880
Weight Kg 3200
Lenght mm 3800
Width mm 1750
Height mm 2350
