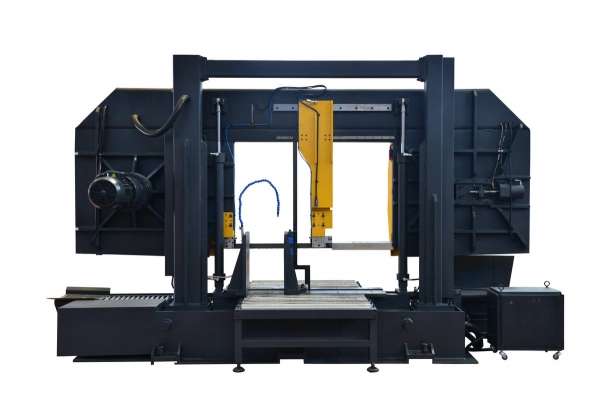

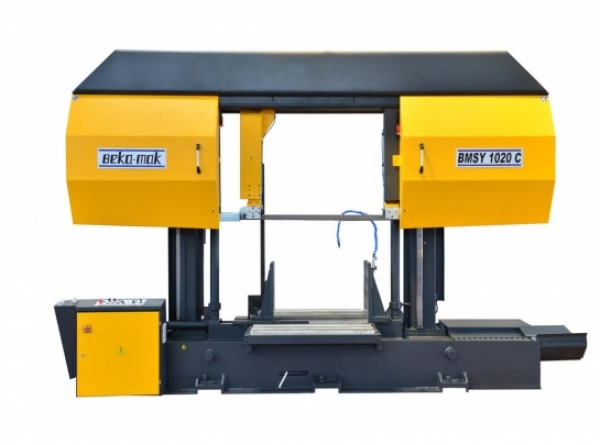

Beka-Mak Twin-Pillar horizontal bandsaws have been designed to give a low cost compact and rugged machines.The bow is constructed in heavy gauge steel and mounted two chromed and grinding pillars offer a strong rigid sawframe, providing a high degree of accurancy when cutting. The machines are fitted with a removable coolant tank incorporating a submerged electric coolant pump which supplies coolant to both guide assemblies. These models can cope with most types of material.Blade guides with rollers and carbide pads provide precise support for the blade. Thermal overload and no-volt release are standart feature and the machines automatically switch off at the end of the cut and sawframe is lifted hydraulically up to the adjusted level.

pdf Data Sheet


Technical Details

Round Cutting Capacity mm 1020
Flat Cutting Capacity mm 1020x1020
Square Cutting Capacity mm 1020
45°Round Cutting Capacity mm 675
45°Flat Cutting Capacity mm 675 x 1020
45°Square Cutting Capacity mm 675
Main Drive Motor kW 7,5
Hydraulic Motor kW 2,2
Coolant Pump kW 0,12
Chip Conveyor Motor kW 0,25
Cutting speed m/min 20-100
Sawband mm 9500x54x1,6
Working Height mm 535
Machine Weight Kg 5860
Length mm 4500
Width mm 1700
Height mm 2750
